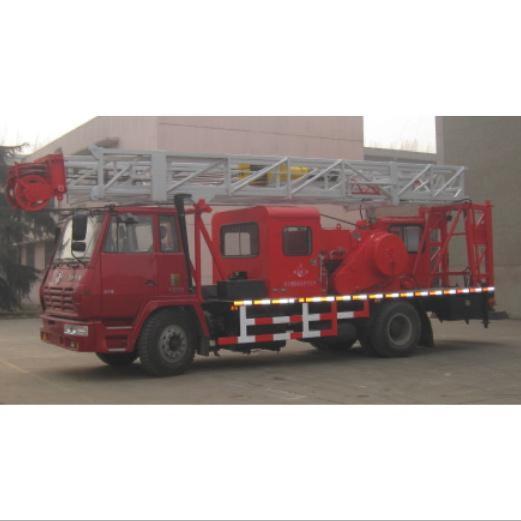

XJ450 workover rig
XJ450 workover rig is truck-mounted workover equipment, it adopts the second class chassis, it is equipped with auxilary frame, P.T.O.
hydraulic torque converter, drawworks drum and its brake system, angle transmission box, two section telescopic mast, traveling system
and weight indicating equipment, air and electric system which is controlled by driller, etc.
1.The engine power configuration is reasonable, the lifting and falling speed is quick, the work efficiency is high
2.In the transmission system, the hydraulic torque converter made the transmission balance and soft, and it can be adjusted steplessly, the
use rate of engine power is high.
3.The drum adopts double-end input clutch, it can realize the reverse rotation, it is benefit for the falling of the hook.
4.The mast is pneumatic load-bearing type, the structure is steady, the using is safe and convenient.
|
Product model |
ZYT5190TXJ workover rig |
|
Chassis type |
4×2 second class chassis |
|
Workover depth （2 7/8″ upset tubing） |
2000 m |
|
Nominal hook load |
300 kN |
|
Max. hook load |
450 kN |
|
Dia. of rope mm / Effective number of rope |
Φ19/6 mm |
|
Mast height |
17, 18 mm |
|
Outside dimension when moving (including mast) |
10040×2490×3750 mm |
|
Curb weight |
18900 kg |
