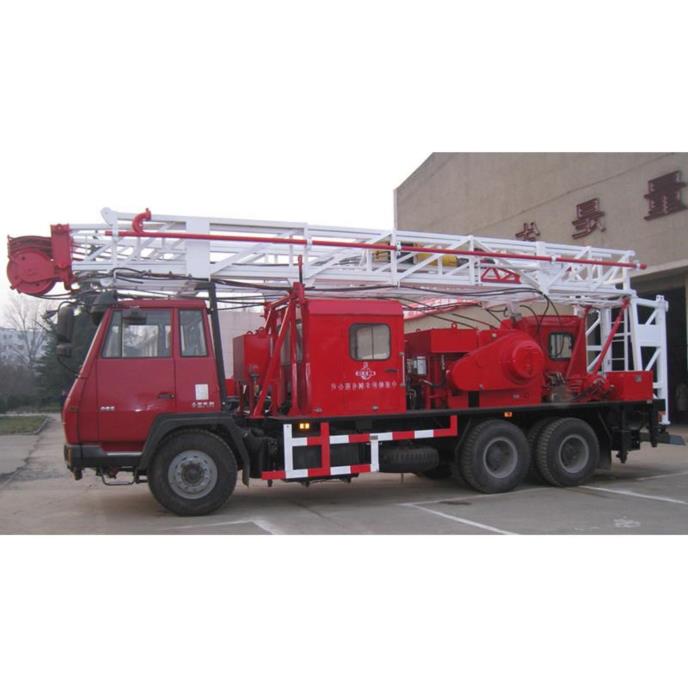

XJ150 type workover rig without guy line
XJ150 type workover rig without guy line is truck- mounted workover equipment, it adopts second-class chassis as installation base, on
which install with the frame, take off power device, hydrauic torque converter, the drawworks and the brake system, angle gearbox, two.
section telescopic mast, the side turover prevention assembly, raveling system and the weight indicating device and pneumatic and
electric system of driller control etc. Since it is not necessary to install extemal windoad guylines, operating eficiency is greatly improved
and reduce the operation cost and labor intensity, reduce the well site installation area.
1 .Adapted to the narrow area of well site operation, reduce the whole set floor area,
2.All Guy line are fixed on the workover rig to save the cost and labor;
3.Being equipped with electronic alarm device of anti-inclination and have the anti-turnover
pre-warning function, which improves the safety of the workover operation.
|
Depth of workover（2 7/8EU tubing） m |
2000 |
|
Rated hook load kN |
300 |
|
The max. Hook load kN |
450 |
|
Height of mast m |
18 |
|
Traveling system |
3×4 |
|
Power of engine kw |
213 |
|
The max. Pull of fast line of drawwork： kN |
80 |
|
The dia. Of wireline： mm |
22 |
