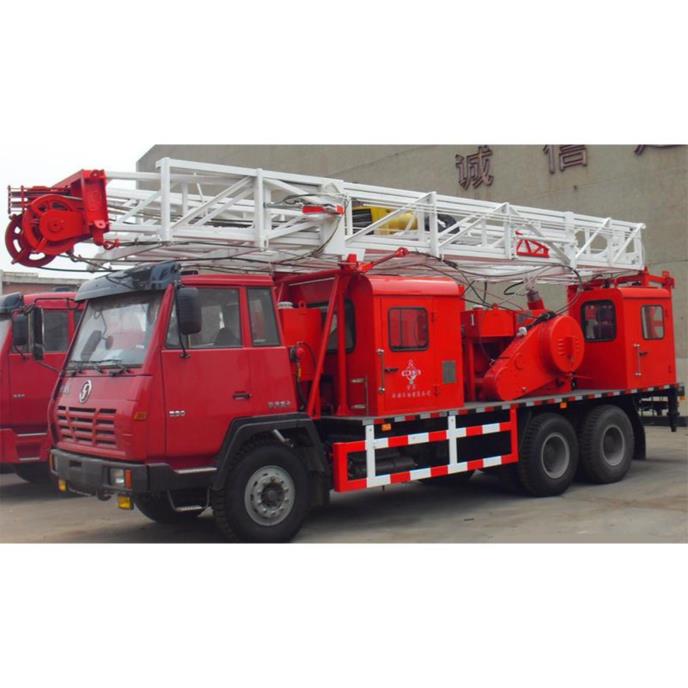

XJ600 Workover Rig
XJ600 workover rig is truck-mounted sevice equipment, it adopts the second-class chassis, it is equipped with auxiliary frame, P.TO
hvdraulic toroue converter, drawworks drum and its brake svstem, angle gear box. two section telescopic mast, traveling svstem and weioh
indicating equipment, air and electric system which is controlled by driller, etc.
1.The engine power configuration is reasonable, the trip up and down speed is quick, the work efficiency is high
2. In the transmision system, the hydraulic torque converter makes the transmission stable and fexilble, and it can be adjusted steplessly
the using rate of engine power is high.
3.The drum adopts double-end input clutch, it can realize the reverse rotation, it is benefit for the falling of the hook.
4.The mast is pneumatic load-bearing type, the structure is steady, the using is safe and convenient.
|
Product model |
ZYT5231TXJ workover rig |
|
Chassis type |
6×4 second-class chassis |
|
Workover depth (2 7/8″upset tubing) m |
2600 |
|
Nominal hook load kN |
300 |
|
Max. hook load kN |
585 |
|
Dia. of rope mm / Effective number of rope n |
φ22/6 |
|
Mast height |
18 |
|
Outside dimension when moving (including mast) mm |
10590×2490×3950 |
|
Curb weight kg |
22770 |
