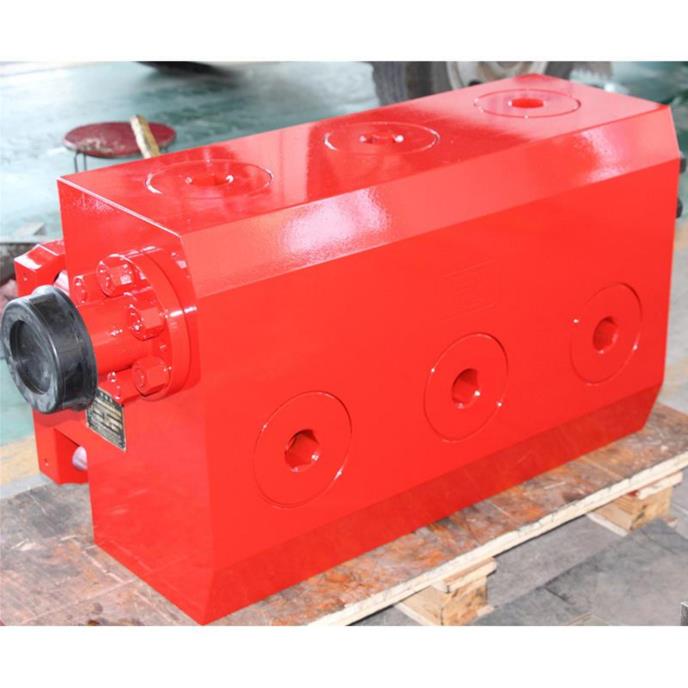

2250 Triplex Plunger Pump
2250 Triplex Plunger Pump is Commonly used fracturing equipment. For this pump,the double cylinder oblige gear transmision driving
model make the equipment uniform force and improve the pump's stability and service life.
|
Max.Power Braking |
2,500HP (1,864KW) |
|
Max. Connecting rod Load |
229,305 lbf (1,020KN) |
|
Stoke |
8” (203.2mm) |
|
Driving Model |
Double cylinder oblige gear transmission |
|
Speed rations |
6.353:1 |
|
Dimension L×W×H mm |
87.81*57.65*43.5 in. (2,230*1,462*1,105mm) |
|
Weight |
13,778 lbs (6,250Kg) |
